Adhesive Dispensing Equipment For 50ml Dual Cartridge Packing AB Glue

Adhesive Dispensing Equipment For 50ml Dual Cartridge Packing AB Glue QZ331AB50-B

Brand: Qizhong Dispensing
Model: QZ331AB50-B
Origin: NingBo CHINA
Shipping Terms: EXW/FOB/C&F
Delivery Time: 5 work day （Except for customization）
Service: Recommend suitable glue
Experience: More than 10 years experience in dispensing industry

Introduction
Generally suitable for ab glue dispensing with 50ml dual cartridge packing. Liquid ratio 1:1-10:1 each kind of Double syringe-loaded A, B component. Use static mixing with mixing tubes static mixer.

keywords: 3-axis Epoxy-Resin AB-Glue 2-Part-Adhesive mixing epoxies

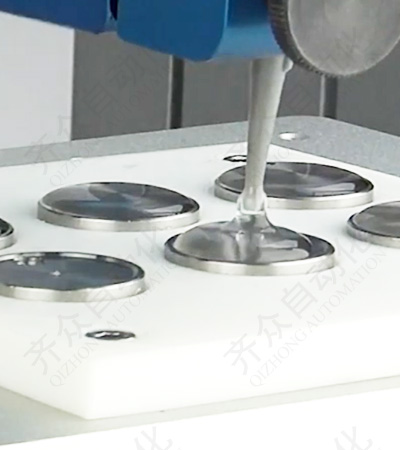

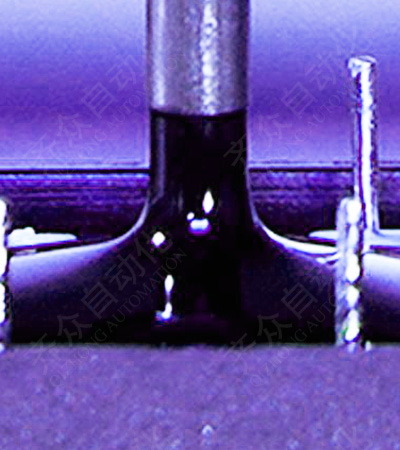

Gluing Effect

Features

1. 50ml syringe type two-component glue valve: suitable for quantitative dispensing process of 1:1, 1:2, 1:4, 1:10, 50ml syringe type two-component glue on the market.

2. Precision glue volume controller: After more than 10 years of stable application, the stability of the machine in glue volume control is guaranteed.

3. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine.

4. Hand-held programming teaching box: Any graphic trajectory on the same plane can be edited by command methods such as point/line/arc.

Advantages To The Business

1. Alleviate the common problem of difficulty in recruiting workers in many production-oriented enterprises, and replace some manual gluing processes.

2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.

3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).

4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.

Technical Parameters

MODEL	QZ331AB50-B
Maximum Speed (X&Y/Z)	300 x 300 x 100mm
Body Dimensions	600 x 600 x 600mm
Weight	45KG
Distance between Z-axis and worktable	100mm
Workbench size	200mm150mm(W/D), M4 Hole Position, 40mm40mm Spacing
Industrial Movement	X/Y/Z three-axis three-linkage
Drive System	Precision micro-stepping motor and Stepper drive
Transmission Method	Timing Belt/ Precision Linear Guides
Safety Protection	Photoelectric Sensor
Edit Programming	Handheld Programmer
Program File Name	Numbers and letters
Operation interface	Chinese (Simplified)/English, freely switchable
Interpolation Function	Point/line/line segment/arc/full circle/3D trajectory, etc.
Test	Separate Button
I/O Signals	4 inputs / 4 outputs
XY/Z Maximum Load	10kg/3kg
Equipment Power	Less than 500W
Power Supply	AC220V±10%/AC，50/60Hz
Air supply requirements	0.5～0.7Mpa, Dry air source
Environment Temperature	0 ～40℃

Service

1. Desktop Dispensing Robot is guaranteed for three years.
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Provide free gluing sample service before sale.
5. Recommended supporting automation process solutions.
